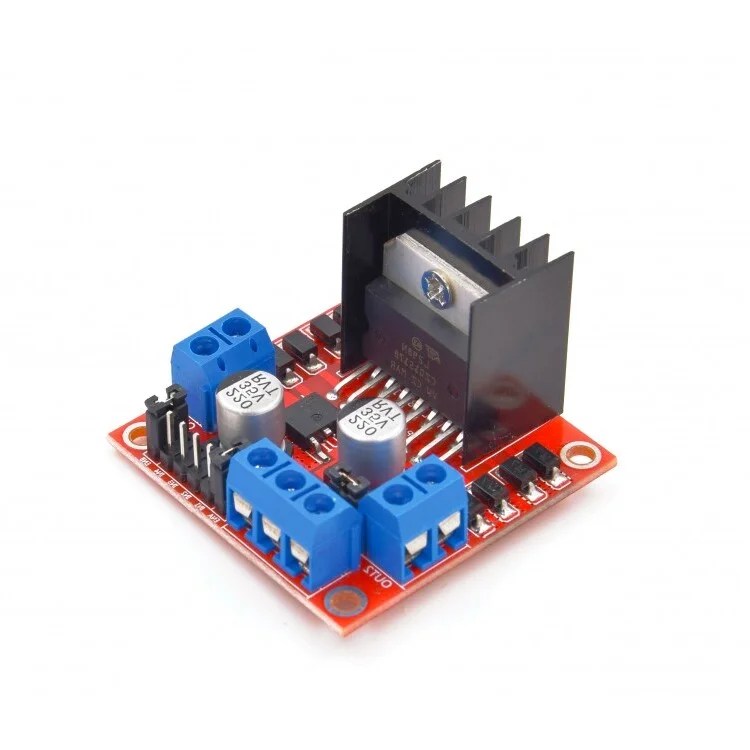

L298N Dual H-Bridge Motor Driver Module – DC & Stepper Motor Control

The L298N Motor Driver Module available in Pakistan is a powerful and widely used dual H-bridge motor driver designed to control two DC motors or one stepper motor with ease. It allows forward, reverse, speed, and direction control, making it ideal for robotics, automation, and Arduino-based projects.

With onboard heat sink, protection diodes, and easy-to-use screw terminals, the L298N is a popular choice for robot cars, line followers, and STEM learning kits.

Key Features

• Driver IC: L298N Dual H-Bridge

• Motor Supply Voltage: 5V – 35V DC

• Logic Voltage: 5V

• Output Current: Up to 2A per channel (with proper cooling)

• Motor Control: Forward, reverse & braking

• Speed Control: PWM supported

• Onboard 5V Regulator

• Heat Sink Included

• Screw Terminals for Motors & Power

Applications / Arduino Projects

• Robot cars & tanks

• Line follower & obstacle-avoiding robots

• DC motor speed and direction control

• Stepper motor control

• Conveyor belts & automation systems

• STEM robotics & educational kits

Compatibility

• Arduino Uno / Nano / Mega

• ESP32 / ESP8266 (logic level compatible)

• Raspberry Pi

• Other microcontrollers with digital & PWM pins

How It Works

• Two H-bridges allow independent control of two motors

• Direction is set using IN1–IN4 pins

• Speed is controlled using PWM on ENA & ENB pins

• Motors can rotate forward, reverse, or stop
